Accuphase
simply do not do this often, that is, introduce a totally new product.
The all new E-800 takes it’s place alongside the
C-3850, A-250 and
DC/DP-950
as the Precision flagship model in the already impressive line line up.
As desirable as this new machine may be, we should perhaps take a
moment to reflect on the Anniversary aspect.
Fifty years is a long long time in audio history. Sure we still have
many of the famous marques, Krell, Levinson, Audio Research, Luxman,
Marantz and so on, the list is extensive. But few if any can trace their
ownership, location and importantly, manufacturing culture and
philosophy, as a single unbroken steadfast thread to the very first day
the Institution “Accuphase” was born.
For
those readers who may wonder about the Accuphase mystique and whether
it is justified. I would suggest a visit to the Accuphase website and
peruse the company philosophy manifesto. In a nutshell, the brand is
simply uninterested and therefore untroubled with growth, outside
shareholders, changing fashions and new technologies (streaming) until
the technology in question is mature and 100% reliable.
Accuphase
really only have two masters. Firstly they are a slave to the
appreciation of the musical art form. After all that is the function of
the equipment, to deliver music in the finest manner possible. The
second master is that of craftsmanship and again, the finest quality
possible, that music enthusiasts, like you and I, might aspire to.
The all new E-800 Class A Precision Integrated Stereo Amplifier sets a benchmark that most others can only dream about.
Integrated Amplifier Is First Entry in New Flagship Model Series
The
E-800 is positioned above the E-650 as the new flagship model in the
integrated amplifier line up of Accuphase. The preamplifier section
features the impeccable Balanced AAVA type volume control. And the power
amplifier section is configured as an instrumentation amplifier using a
six-fold parallel push-pull configuration of power MOS-FETs driven in
pure Class A. The resulting quality is on a par with high class separate
type amplifiers. Operating as a simple and smart system, the E-800
realises acoustic excellence that reaches to the very heart of the
music.

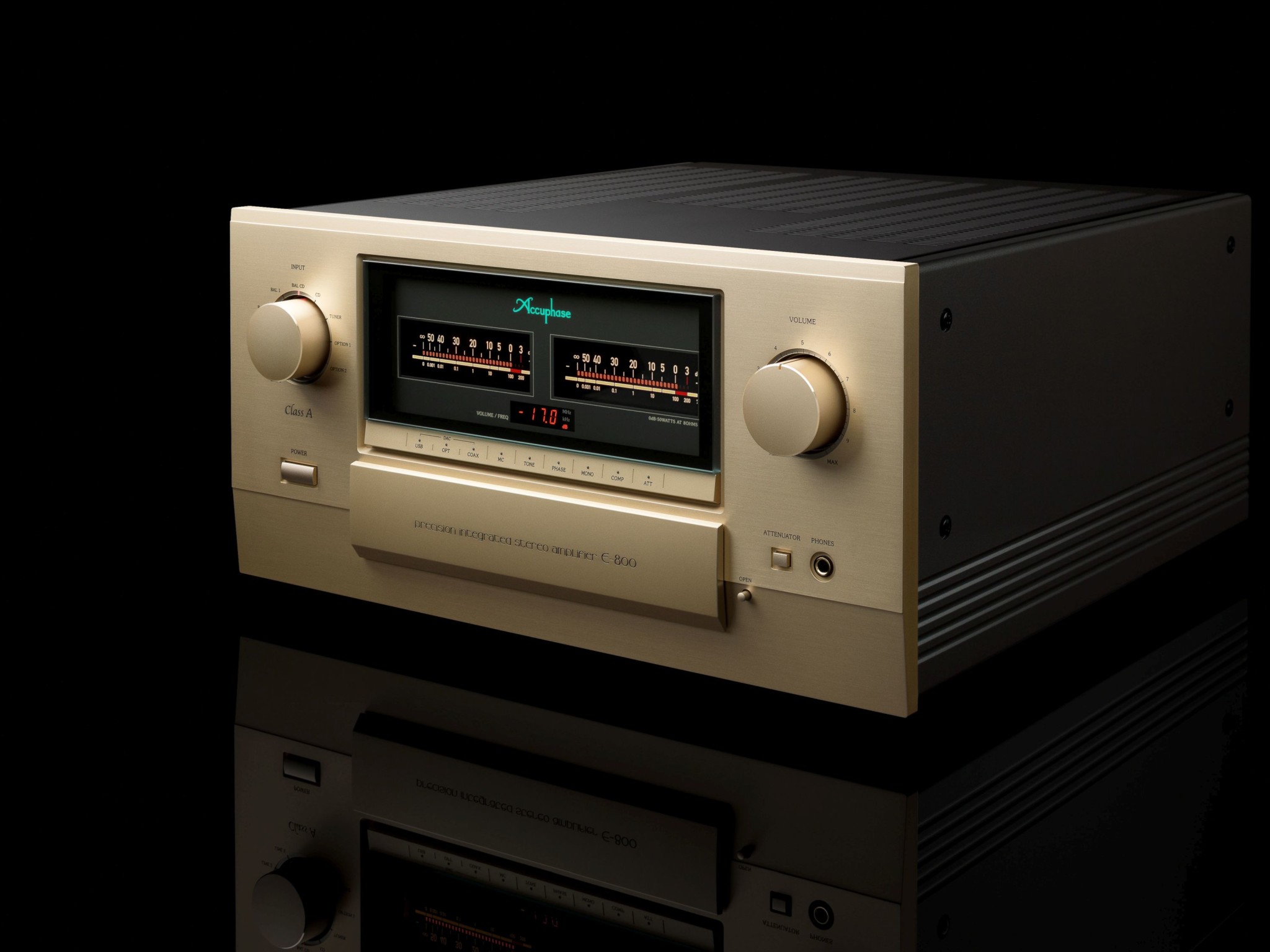

Ultra-Massive
Pure Class-A Precision Integrated Amplifier Combining cutting-edge
technology with carefully selected materials of superb quality, the

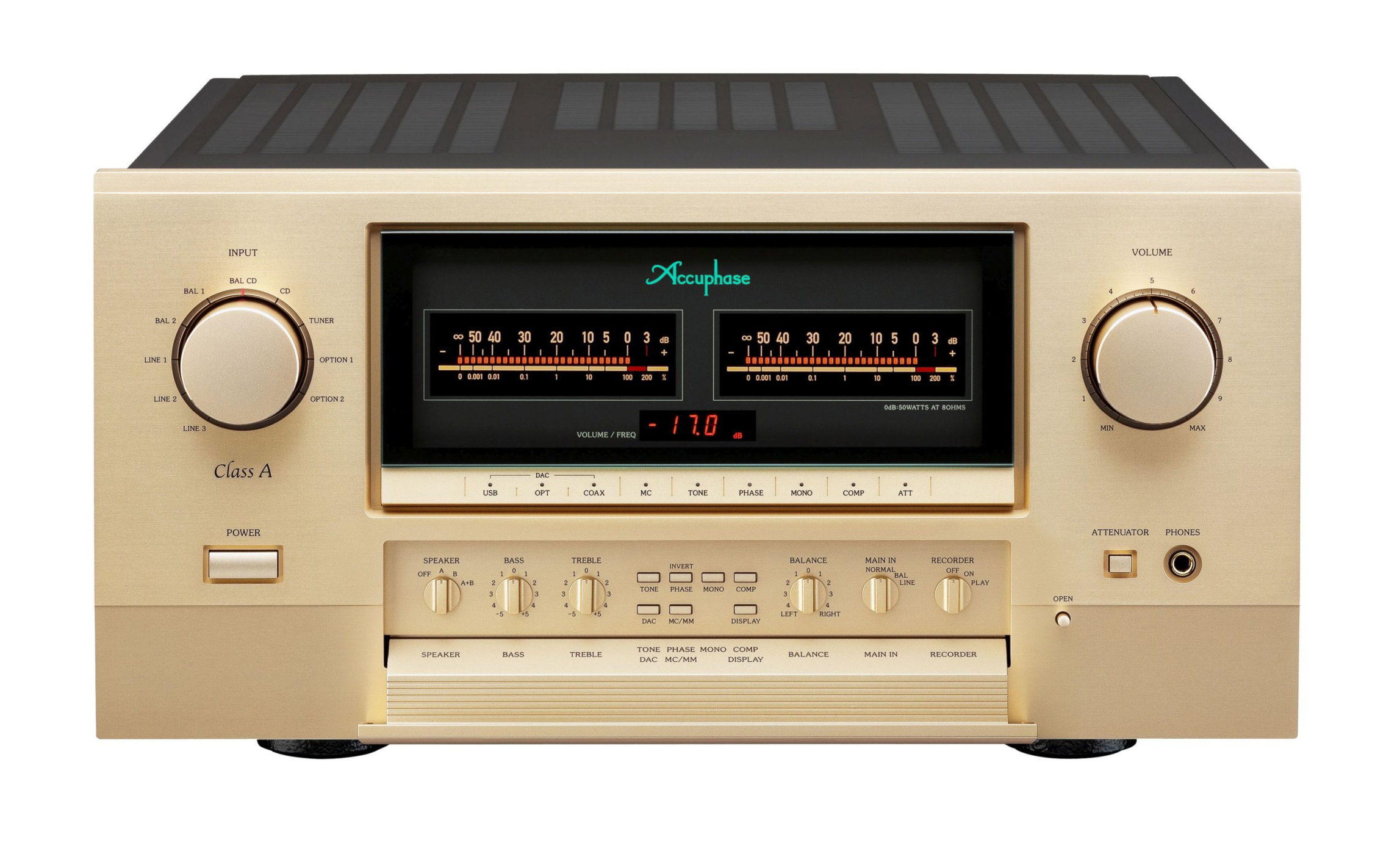

E-800 exudes an aura of solid luxury, with a lavish champagne gold front
panel that changes its look depending on the viewing angle, and bar
graph meters that delicately reflect the rhythm of the music.
Formidable power amplification stage.

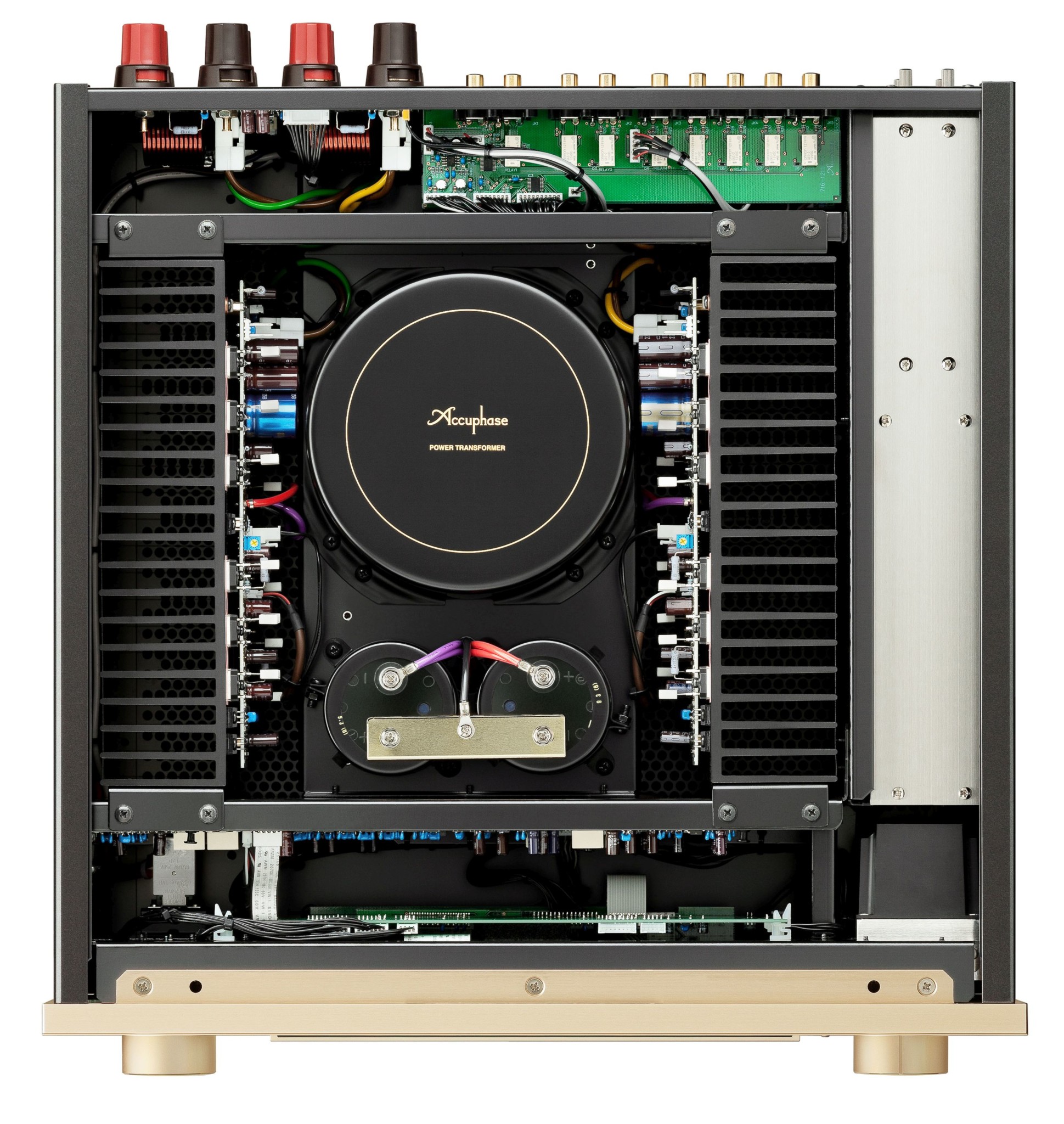

The power amplification circuitry mounted directly on a large heat sink
employs a six-fold parallel push-pull configuration of power MOS-FETs
driven in Class A. Two identical units arranged on the left and right
sides of the chassis deliver impeccable power in a linear progression
for the two channels. 50 watts into 8 ohms, 100 watts into 4 ohms, and
200 watts into 2 ohms. The amplifier can even supply 300 watts into 1
ohm (music signals).
Power supply circuitry designed for optimum stability.
The strong power supply with massive high efficiency toroidal
transformer and two large 60,000 μF filtering capacitors ensures a
stable current supply at all times.
Balanced AAVA type volume control.
AAVA performs volume adjustment by making use of a combination of 16
current signals with different magnitude. This thereby eliminating
signal degradation and impedance fluctuations and maintaining high S/N
ratio and low THD over the entire volume range. In the Balanced AAVA
implementation of the E-800, two AAVA circuits are driven in a fully
balanced configuration with a superior capability to eliminate external
noise.
High-accuracy, high-rigidity volume sensor construction.
The volume sensor mechanism developed by Accuphase in-house is built
from a single massive aluminium block extruded and finished with utmost
precision and complemented by other substantial materials, to ensure a
silky smooth operation feel.
High damping factor brings out the full musical potential of loudspeakers.
Features such as Balanced Remote Sensing and MOS-FET switches help to
realise a damping factor of 1000. Superb motion control lets every
loudspeaker perform at its very best.
Highlights
- Integrated amplifier with fully balanced configuration extending from input to output
- Balanced AAVA type volume control
- Power amplification stage configured as instrumentation amplifier
- Six-fold parallel push-pull configuration of power MOS-FETs driven in Class A
- Linear power progression of 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms
- 300 W output into 1-ohm load (music signals)
- High damping factor of 1000
- Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
- Protection circuitry using MOS-FET switches
